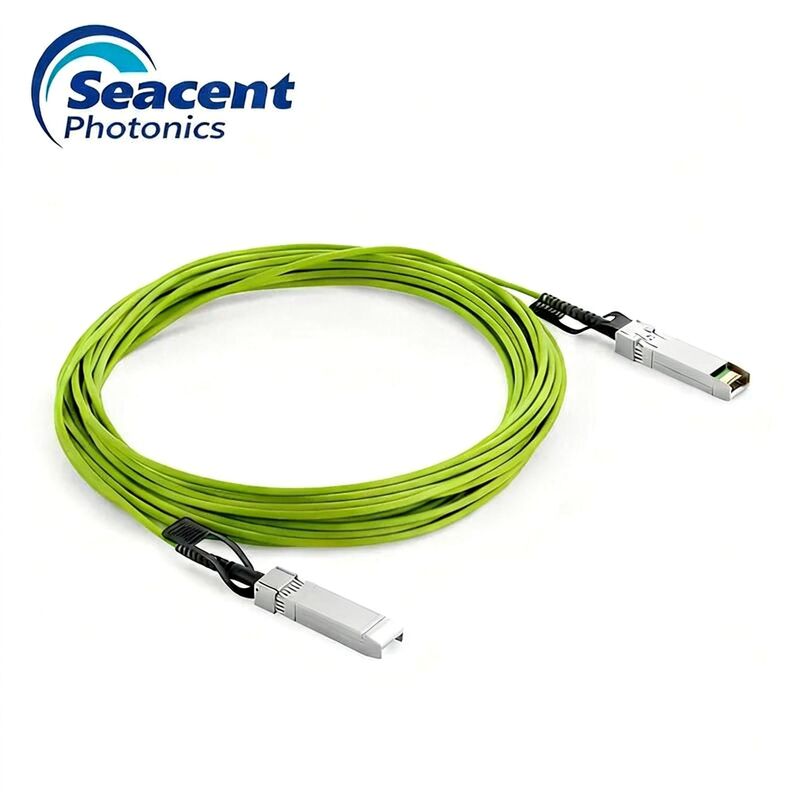

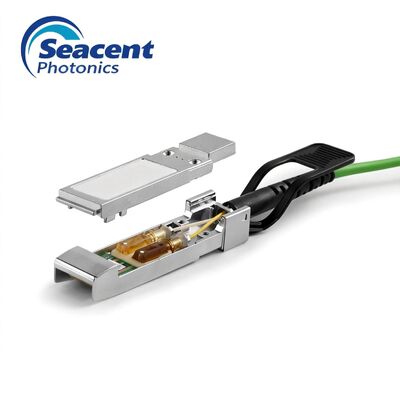

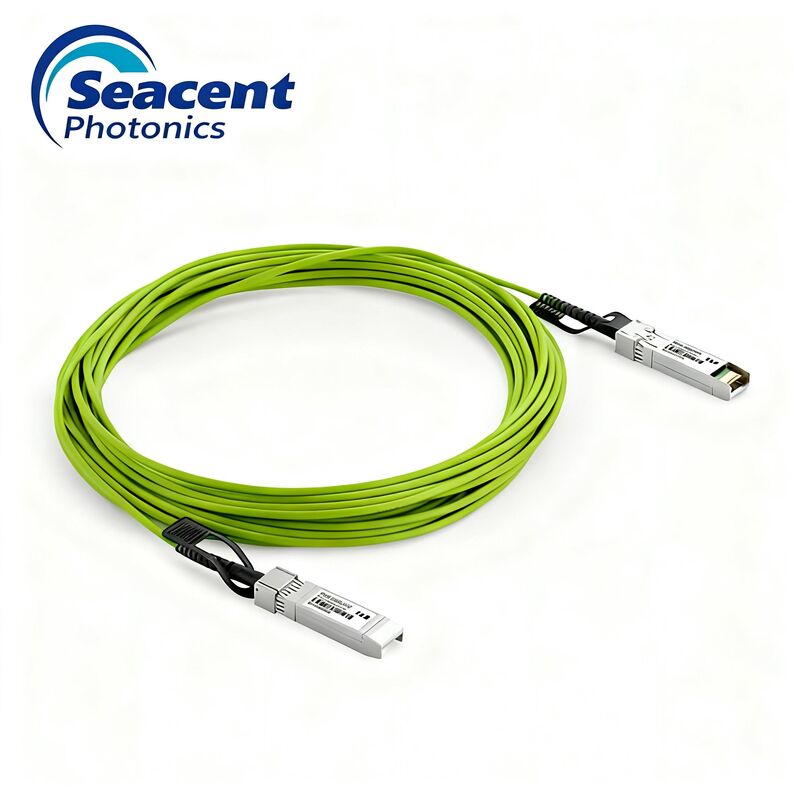

25G SFP28 AOC Active Optical Cables Multi-Mode
  • Nama
  • Nama

25G SFP28 AOC Active Optical Cables Multi-Mode

Nama merek: Seacent
Nomor Model: 25G SFP28
MOQ: 1 piece
Ketentuan Pembayaran: L/C, T/T, D/P
Kemampuan Penyediaan: 100,000 pieces per month
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Place of Origin:
Shenzhen,China
Sertifikasi:
ISO9001,ROHS
Product name:
25G SFP28 AOC
Total Speed:
25G
Breakout Type:
1:1
Side A Speed:
25G NRZ
Side B Speed:
25G NRZ
Length:
1M-100M
Supply Ability:
100,000 pieces per month
Menyoroti:

25G SFP28 AOC

,

Multi-Mode 25G SFP28 AOC

,

Active Optical Cable

Deskripsi Produk

25G SFP28 AOC Active Optical Cables Multi-Mode

Seacent 20G SFP28 Active Optical Cables are integrated, high-speed interconnect assemblies with SFP28 connectors, optimized for very short-distance, high-bandwidth connections within and across adjacent racks in data centers. They offer a more economical and streamlined connectivity solution for 25 Gigabit Ethernet and Infiniband EDR applications compared to traditional discrete transceivers. The modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm, and feature a standard 20-contact edge-type electrical connector.



Product Features:

  • Hot-pluggable SFP28 form-factor connectors

  • 850nm VCSEL laser and PIN photo-detector

  • Internal CDR circuits on both receiver and transmitter channels

  • Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR

  • Data rate up to 25.78125Gbps

  • 3.3V power supply voltage

  • Power consumption < 0.8W per end

  • RoHS compliant (lead free)



​Applications:​

  • 25GBASE-SR Ethernet



Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Supply Voltage VCC 3.15 3.3 3.45 V
Operating Case Temp. (Standard) Tca 0 — +70 ℃
Operating Case Temp. (Industrial) Tca -40 — +85 ℃
Baud Rate Per Lane DR — — 25.78125 Gbps
Fiber Bend Radius Rb 3 — — cm

25G SFP28 AOC Active Optical Cables Multi-Mode 0

Tag:

25G SFP28 AOC

Multi-Mode 25G SFP28 AOC

Active Optical Cable

Harga yang bagus on line

rincian produk

Rumah > Produk >
AOC Active Optical Cables
>
25G SFP28 AOC Active Optical Cables Multi-Mode
Semua Kategori

Fiber Optic PLC Splitter

Cassette Plc Splitter

Rack Mount PLC Splitter

AOC Active Optical Cables

AAWG

Serat optik Array

CWDM Mux Demux

DWDM Mux Demux

AWG Mux

CCWDM

Filter WDM

PLC Splitter Chip

AWG Chip

serat optik kabel patch

serat optik dikepang

Modul Transceiver Optik
25G SFP28 AOC Active Optical Cables Multi-Mode
  • Nama
  • Nama

25G SFP28 AOC Active Optical Cables Multi-Mode

Nama merek: Seacent
Nomor Model: 25G SFP28
MOQ: 1 piece
Ketentuan Pembayaran: L/C, T/T, D/P
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Place of Origin:
Shenzhen,China
Nama merek:
Seacent
Sertifikasi:
ISO9001,ROHS
Model Number:
25G SFP28
Product name:
25G SFP28 AOC
Total Speed:
25G
Breakout Type:
1:1
Side A Speed:
25G NRZ
Side B Speed:
25G NRZ
Length:
1M-100M
Minimum Order Quantity:
1 piece
Delivery Time:
5-8 work days
Payment Terms:
L/C, T/T, D/P
Supply Ability:
100,000 pieces per month
Menyoroti:

25G SFP28 AOC

,

Multi-Mode 25G SFP28 AOC

,

Active Optical Cable

Deskripsi Produk

25G SFP28 AOC Active Optical Cables Multi-Mode

Seacent 20G SFP28 Active Optical Cables are integrated, high-speed interconnect assemblies with SFP28 connectors, optimized for very short-distance, high-bandwidth connections within and across adjacent racks in data centers. They offer a more economical and streamlined connectivity solution for 25 Gigabit Ethernet and Infiniband EDR applications compared to traditional discrete transceivers. The modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm, and feature a standard 20-contact edge-type electrical connector.



Product Features:

  • Hot-pluggable SFP28 form-factor connectors

  • 850nm VCSEL laser and PIN photo-detector

  • Internal CDR circuits on both receiver and transmitter channels

  • Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR

  • Data rate up to 25.78125Gbps

  • 3.3V power supply voltage

  • Power consumption < 0.8W per end

  • RoHS compliant (lead free)



​Applications:​

  • 25GBASE-SR Ethernet



Absolute Maximum Ratings:

Parameter Symbol Min. Max. Unit
Power Supply Voltage VCC -0.5 +3.6 V
Storage Temperature Tc -40 +85 ℃
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typical Max. Unit
Supply Voltage VCC 3.15 3.3 3.45 V
Operating Case Temp. (Standard) Tca 0 — +70 ℃
Operating Case Temp. (Industrial) Tca -40 — +85 ℃
Baud Rate Per Lane DR — — 25.78125 Gbps
Fiber Bend Radius Rb 3 — — cm

25G SFP28 AOC Active Optical Cables Multi-Mode 0

Tag:

25G SFP28 AOC

Multi-Mode 25G SFP28 AOC

Active Optical Cable
